Active RGBW (DMX) Large Harness

The Lumisphere Active® System utilises data over voltage technology to provide a DMX controllable RGBW system that can be used in our existing X12 large harness festoon system.

The Lumisphere Active® RGBW Unit is a plug in LED module which uses 3 RGBW SMD LEDS consuming 1.0watts giving a bright and vibrant feel. The system can have up to 4 channels of independent control, and requires a Lumisphere Encoder to interface between controller and festoon. For further information on the Encoder, please see below.

Product Details
Supply 24v DC
Light Source Lumisphere RGBW unit (3 chip)
Env. Prot IP68
Conformity BS EN 60958 CE Lampholder/Cable UL Listed
Average Life 50,000hrs
Product Options
Globes  G type or A type (IK10 Rated)
Globe Colours Clear, Frosted, White (G Type only)
Lampholder/Cable Colour Black or White

Encoder (DMX input)

The Lumisphere® Encoder acts as an interface between DMX controller and the RGBW festoon system. The Encoder is enclosed within an IP66 rated box making it ideal for outdoor applications. Each encoder can drive up to 100 RGBW units and can be linked together to increase the number of units.


Example system layout can be seen in our brochure

Supply 30v DC
Output 24v DC
ENV. Prot IP68
Control DMX Input

Data sheets available upon request


Lumisphere’s Large and Small Harness festoon systems can be purchased in component form, if required, for self-assembly. In instances where irregular distances between light units are required, or on-site assembly of materials is required, e.g. signage, ceilings, fascias etc, this may preferable. On-site self-assembly tools can also be purchased – please ask the team for more details.

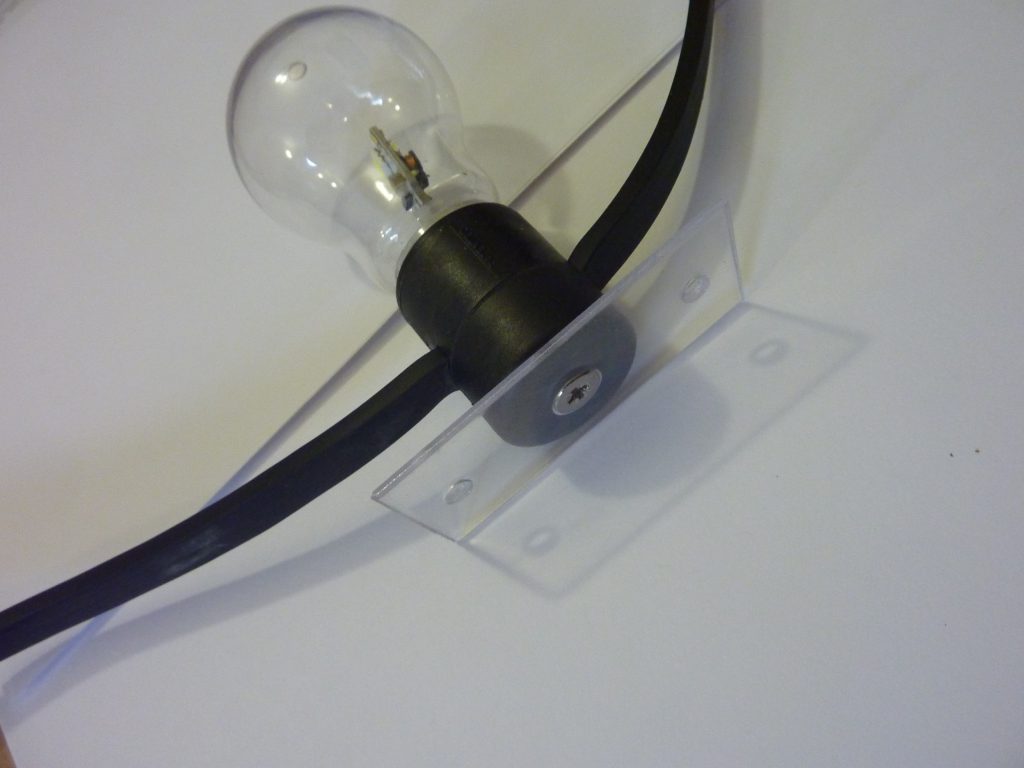

Optional Lampholder and Globe Accessories
