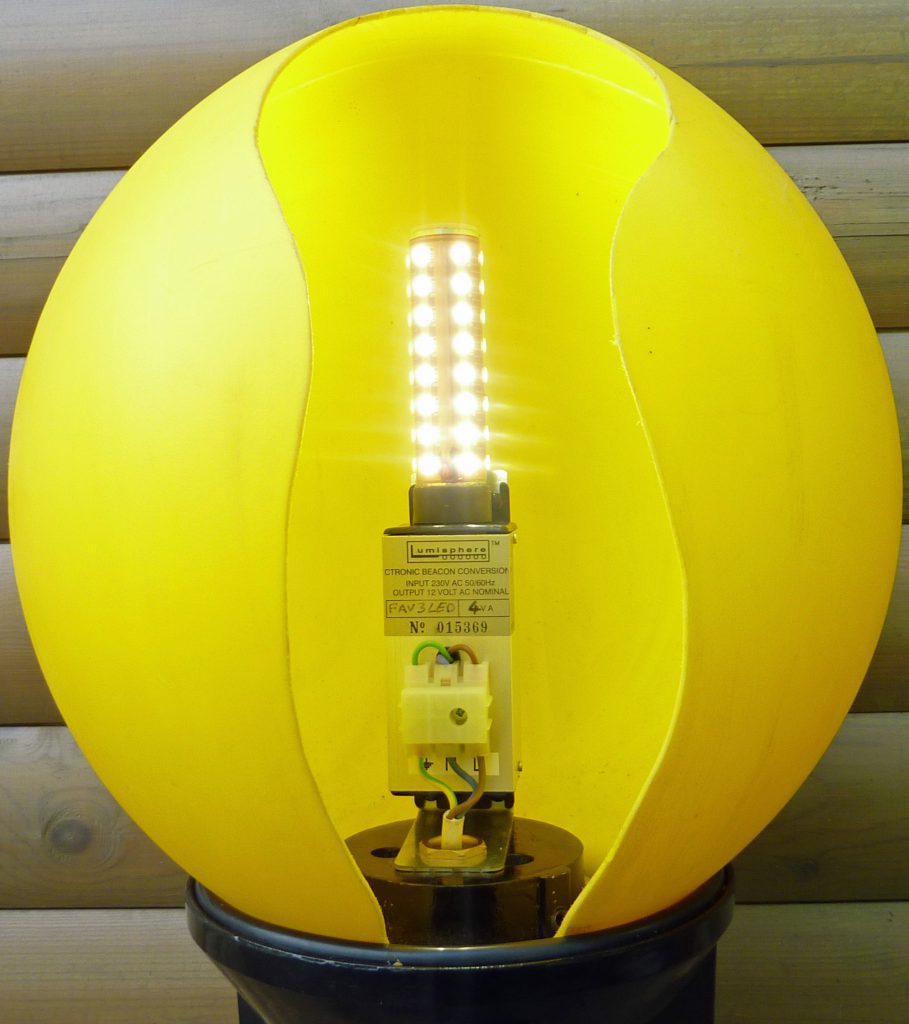

ECUB (Electronic Conversion Unit for Belisha Beacons)
The Lumisphere® Electronic Conversion Unit for Belisha Beacons (ECUB) represents a major technological advance to improve road safety with a sustainable long life light unit with a luminious output in excess of 850lumens.
| Product Details | |
|---|---|
| Supply | 230-250V 50Hz |
| Output | 11.8V 32KHz, 60VA max |
| Lamp Type | LAMP M32L, 12V 50W LED 32SMD LEDS 50MA Warm White |
| Enclosure | Impact resistant uPVC |
| Bracket | 2mm pressed, galvanised steel |
| Circuit | Switched mode power supply derivative with inbuilt oscillation frequency of 32KHz, high voltage selected output devices. |
| Voltage transient suppression, AC filter networks. The unit in non-inherently short circuit protected by incorporation of electronic devices as defined by BS3535-2)xi). There is no electrical connection between input and output as defined by BS3535-2(ii). FS1 and FAV3 models include internal flasher electronics. | |
Data Sheets available upon request
