Carnival (Dimmable) LED Large Harness

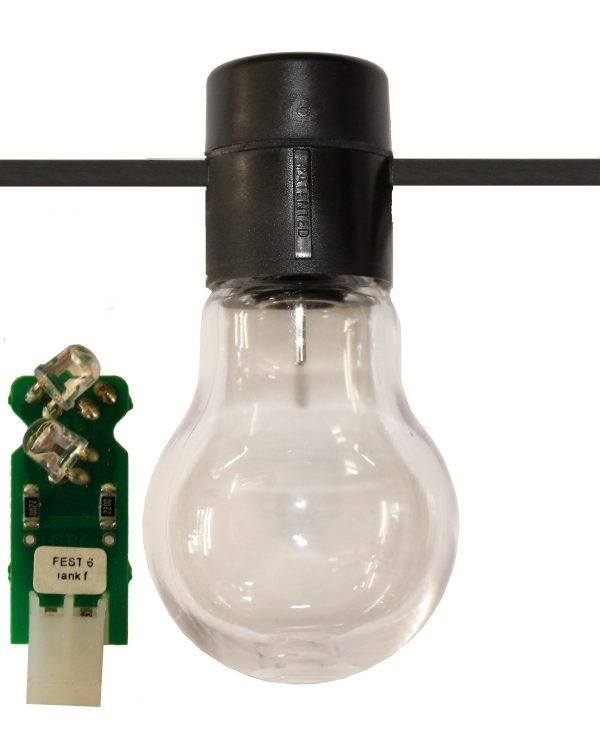

The Lumisphere® Carnival range of LEDs is a fully dimmable AC/DC LED plug in light module which uses 4 x 5mm high brightness light emitting diodes mounted onto a conformal coated heavy duty PCB, with plug in connector ensuring a highly visible wide angle light source with low power consumption. The units are designed to operate at low temperature and drive currents to achieve maximum performance.

Product Details
Supply Low Voltage, High Output 12v AC/DC
Light Source Fully Dimmable Carnival LED 0.6w – Lumen output 65-75
Average Lamp Life 50,000hrs Life Expectancy
IP Rating IP68 Rated
Conformity UL Listed
Warranty Three Year Warranty
Built to your specification
Product Options
Globes G type or A type (IK10 Rated)
LED Colours Warm White (2700-3000k), Cool White (5500-6800k), Red, Blue, Green, Amber, PurpleSpecial colours available upon request
Globe Colours Clear, Frosted, White (G Type only), Red, Green, Blue, Purple, Amber and Pink
Lampholder/Cable Colour Black or White

Data Sheets available upon request


Lumisphere’s Large and Small Harness festoon systems can be purchased in component form, if required, for self-assembly. In instances where irregular distances between light units are required, or on-site assembly of materials is required, e.g. signage, ceilings, fascias etc, this may preferable. On-site self-assembly tools can also be purchased – please ask the team for more details.

Optional Lampholder and Globe Accessories
